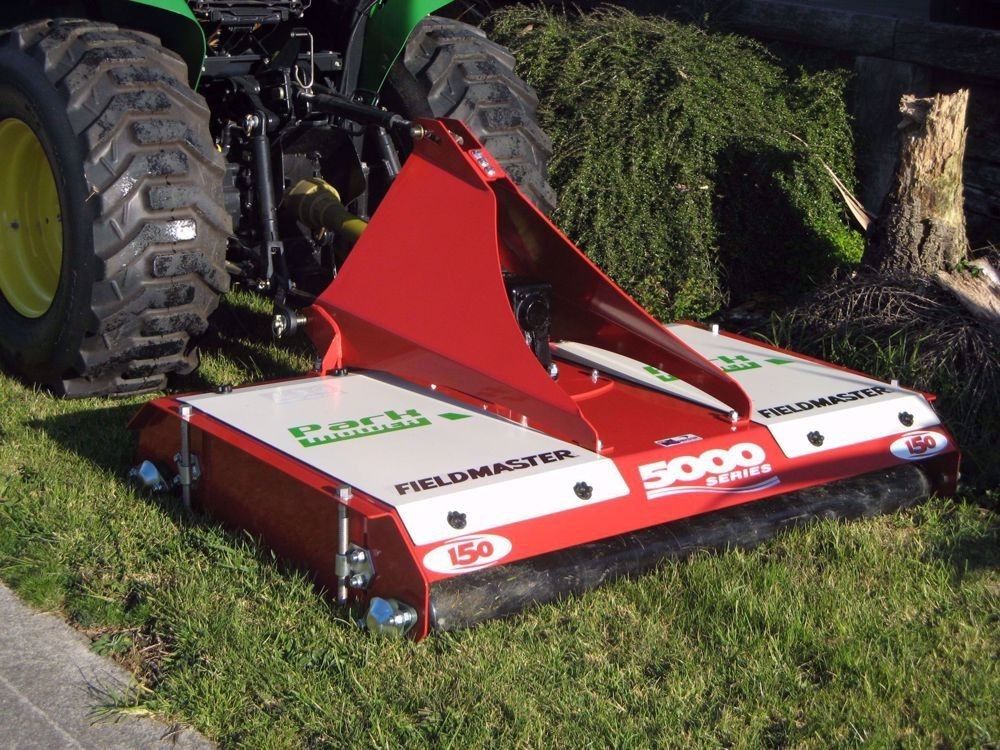

PMM Minipark Mower
Manufacturer: Fieldmaster
The PMM Series of parks mowers are available in 2 widths ideal for maintaining large lawns, parks, sport fields, school grounds and even airports! Fitted with our fine mowing ‘Gold Tip’ blades provides a clean cut, adjustable skids and the option to have rollers fitted front and rear. A single belt drive system coupled with deep groove pulleys and HD spindles ensure maximum power is delivered to the blades providing a great cut every time! The little brother to the PM series is suitable for tractors rated 30-50HP.
DESCRIPTION
Features:
Rear and/or front roller
Fitted with “Gold Tip” Blades
3 HD spindles
Screw adjustable cut-height settings
Full under body grass flow vanes for even grass discharge
Floating top link and PTO driveshaft
Weight matched for smaller horsepower, compact tractors
Suits compact tractors 30-50hp
Low profile with single or twin roller options
Maintain a beautiful rolled lawn finish - full width rollers will ‘stripe finish’ lawns
1 year warranty
SPECIFICATIONS
Feature | PM150 | PM180 |
|---|---|---|
Cutting Width (mm) | 1480 | 1730 |
Cutting Height (mm) | 10-120 | 10-120 |
Overall Width (mm) | 1580 | 1830 |
Overall Length (mm) | 1170 | 1170 |
Overall Height (mm) | 950 | 950 |
Weight (kg) | 290 | 347 |
HP Requirement | 30-50 | 30-50 |
Blade thickness (mm) | 4 | 4 |
Blade Setup Std | 4x 'Gold-tip' Blades | 4x 'Gold-tip' Blades |
PTO Speed (RPM) | 540 | 540 |
3 Point Linkage CAT | CAT 2 | CAT 2 |
Optional Roller Diameter (mm) | 125 | 125 |
*Due to continuous manufacturing improvements specifications may vary
OPTIONS
Cutter bar option
