FREQUENTLY ORDERED PARTS

4port HYDROFIX

COMPLETE

3645300

FEMALE (Tractor Side)

3537370

MALE (Loader Side)

3645190

0493660

Female Faster coup 3/8-22x1.5

0481820

Male Faster coup 3/8-22x1.5

0494720

4 port handle

1418430

Faster kit SP5

0494680

Dowel kit GP4 guide pin

1420520

Seal

2FFNP38 M

0494700

Faster kit VP4

2port HYDROFIX (for 3rd service)

COMPLETE

3331530

FEMALE Half

3474580

MALE Half

3617080

1410850

Handle 2 port

1410840

Cover 2PORT Hydrofix

1406920

Port Coupling

18 x 1.5 kit 2FNP38 2 18M

1406910

Female coupling

3/8 - 18 x 1.5 2FNB38

1420520

Seal

2FFNP38 M

0481840

Faster kit SP4

0494680

Dowel kit GP4 guide pin

0494700

Faster kit VP4

CHANGE FRAME PARTS

ProfiLine FS FZ 26-20, 48-42 Change Frame Parts Book

Robust F HD-HDP Change Frame Parts Book

ProfiLine FS FZ E58FZ2 Change Frame Parts Book

Robust F HEPM-HDPM Change Frame Parts Book

Solid Change Frame Parts Book

Change Frame Roll pin (x3)

0013090

Change Frame Rod "Dual Drilled" (x1)

3619370

Change Frame Spring (x1)

3350970

Change Frame Washer (x1)

0006410

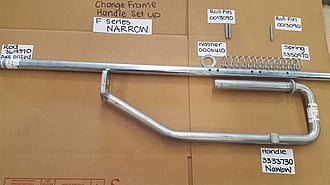

STOLL Change Frame Handle

"F" SERIES (NARROW)

Change Frame Handle F Series NARROW

3333730

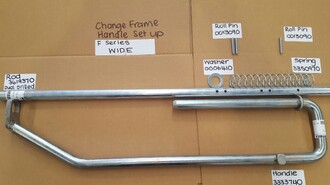

STOLL Change Frame Handle

"F" SERIES (WIDE)

Change Frame Handle F Series WIDE

3333740

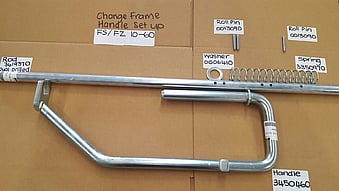

STOLL Change Frame Handle

"FS/FZ" 10 - 60 (NARROW)

Change Frame Handle FS/FZ 10 - 60 NARROW

3450460

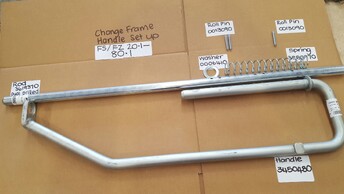

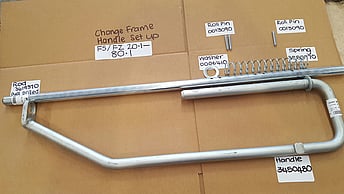

STOLL Change Frame Handle

"FS/FZ" 20.1 - 80.1 (WIDE)

Change Frame Handle FS/FZ 20.1 - 80.1 WIDE

3450480

Change Frame

3424050	FS / FZ 10 - 20
3452270	FS / FZ 8.1 - 20.1

Change Frame

3450420	FS / FZ 30-60
3542700	FS / FZ 30.1 - 80.1

Change Frame

2485690

HD / HDPM 4-35 NARROW

Change Frame

2494640

HD / HDPM 16-36 WIDE

OTHER PARTS PICS & PART NUMBERS

1414880

Hydraulic tool lock Coil

0477830

Solenoid assembly 12v (3rd service)

4SOL519112

Solenoid 3rd service coil

0444300

0463410

1429020

1429030

Snap ring 30mm

Snap ring 35mm

Snap ring 40mm

Snap ring 50mm

STOLL Loader Bushes

PART#	SIZE	MODEL
0481980	30 x 30	FS 8-20.1 / F 4-36 HD / HDPM
0482230	30 x 40	F 4-36 HD / HDPM
0482520	35 x 45	F 50-51 HD / HDPM
0482530	35 x 30	F 50-51 HD / HDPM
0483560	30 x 20	F 4-36 HD / HDPM
0498660	35 x 40	F 50-51 HD / HDPM
1422610	40 x 25	FS / FZ 30-80.1
1409560	35 x 20	F 35-36 HDP F 50-71 HDPM
1428990	50 x 30	FZ 60-80.1
1429610	30 x 25	FS / FZ 10-20.1
1429620	50 x 50	FZ 30-80.1
1429630	45 x 40	FZ 10-20.1
3457030	18 x 7 x 10.2	FS 30-40.1
3469440	18 x 7 x 8.2	FS 10-20.1
4807030	40 x 30	FS 30-40.1 FZ 30-80.1 F 50-51 HDPM

STOLL Loader Pins

PART#	SIZE	MODEL
2341400	25 x 81	Bale Grab
2350530		Hydraulic tool-locking
2432450	40 x 153	Profi cut pivot
2441471	30 x 106	F HDPM 4-36
2441480	30 x 160	F HD / HDPM 4-36
2441491	30 x 125	Bucket with Grab
2441500	30 x 158	F HD /HDPM 4-36
2441510	30 x 151	F HD /HDPM 4-36
2441520	35 x 103	F HD /HDPM 50-51
2441540	35 x 158	F HD /HDPM 50-51
2455970	40 x 106	F HD /HDPM 50-51
2456030	35 x 160	F HD /HDPM 50-51
2456050	40 x 129	F HD /HDPM 50-51
2492450	30 x 114	F HD /HDPM 10-36
2494510	35 x 114	F HD /HDPM 50-51
2494530	35 x 135	F HD /HDPM 50-51
3327810	30 x 124	F HD /HDPM 4-36
3327830	30 x 135	F HD /HDPM 4-36
3327850	35 x 124	F HD /HDPM 50-51
3327870	35 x 135	F HD /HDPM 50-51
3359100	40 x 128	F HD /HDPM 50-51
3359560	40 x 135	F HD /HDPM 50-51
3453870	40 x 134	FS / FZ 30-80.1
3453880	40 x 111	FS / FZ 30-80.1
3453890	50 x 134	FZ 60-80.1
3456200	40 x 124	FS / FZ 30-80.1
3456210	30 x 107	FS / FZ 10-20.1
3456220	30 x 120	FS / FZ 10-20.1
3458560	Control Bar 45 x 75	FZ 10-20.1
3458580	Control Bar 50 x 85	FZ 10-80.1
3463480	40 x 139	FZ 30-80.1
3469370	30 x 97	FZ 8-20.1
3501400	30 x 87.8	FE 650-950P
3501430	30 x 77.8	FE 650-950
3501450	30 x 99.3	FE 650-950P
3614410	40 x 103.8	CL 855-955.1 P / H

0406590

Grease nipple for Loader Pins

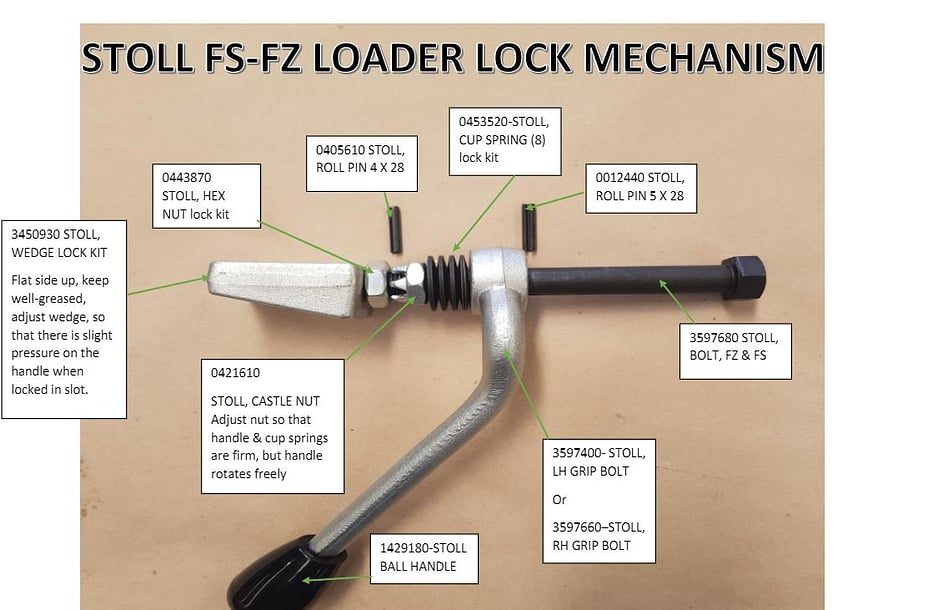

3457050

Locking device

FZ60-80.1

3469380

Locking device

FZ 10-20.1

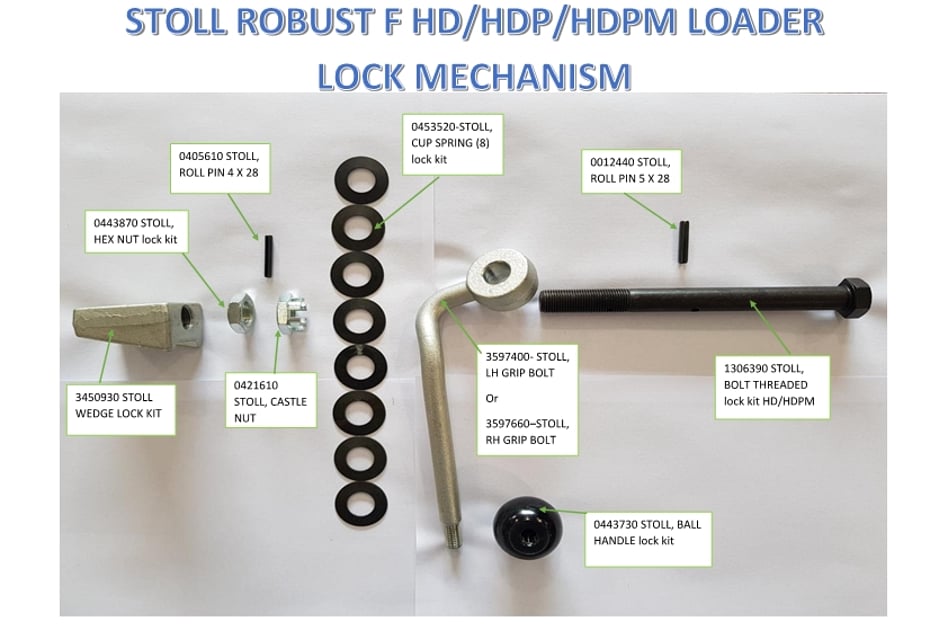

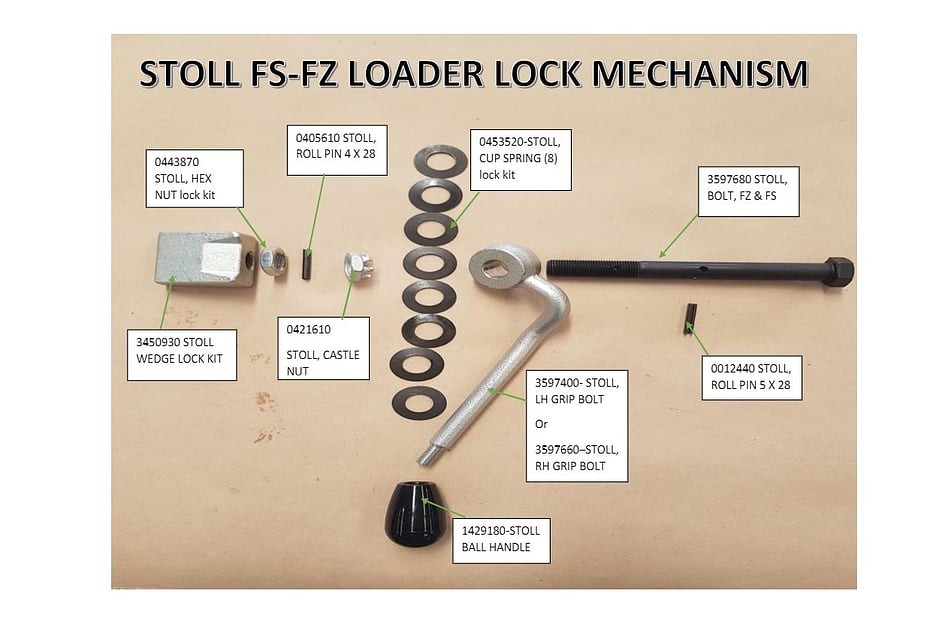

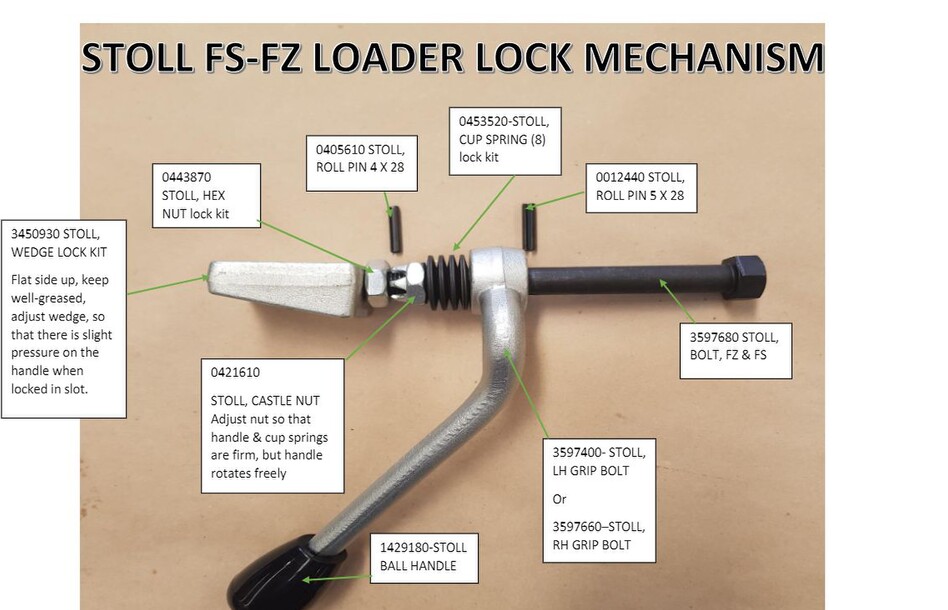

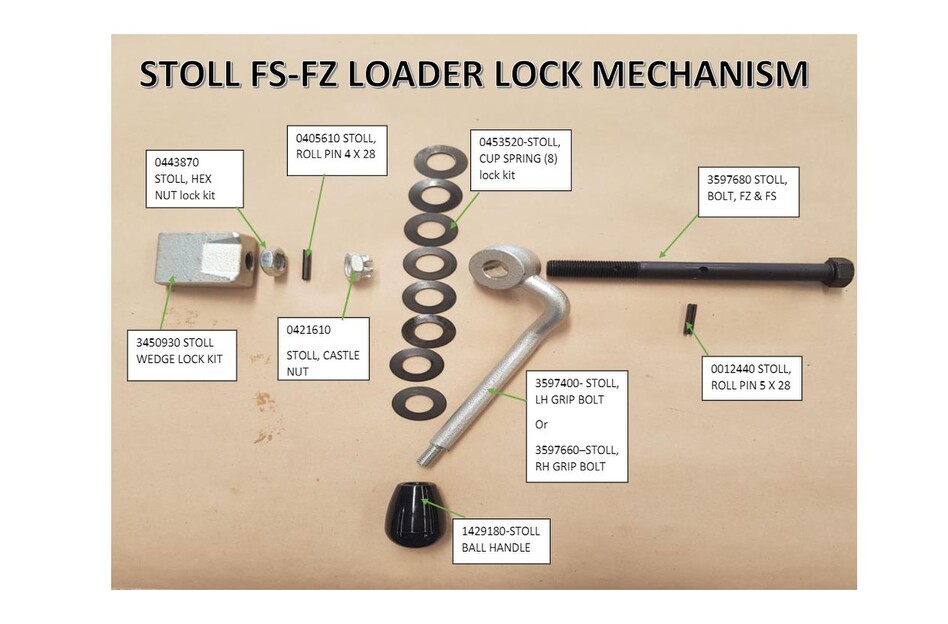

3457060

Locking Device Strip

FZ10-50.1 55x20x6

0453520

Cup spring lock kit

3447700

Lock handle bolt

STOLL Roll Pins

0012440	M5 x 28	Loader Lock F / FS / FZ
0012610	M6 x 40	F Series
0012630	M6 x 50	F Series
0012810	M10 x 40	F Series
0012830	M10 x 50	F Series
0012840	M10 x 60	F Series
0013050	M4 x 28	Solid P/H
0013090	M5 x 36	all Change Frames
0200270	M6 x 60	F Series
0405610	M4 x 28	Loader Lock F / FS / FZ
1407240	M5 x 28	Solid P/H
1413740	M16 x 70	F Series

3457390

Double lever CPL 10-20.1

5TEL108220

Cable End kit

0488090

Cable end housing

0496980

Joystick Pivot Ball

1429960

Joystick rod

0401090

Third service switch

1439150

wk300 Joystick Base

STOLL Cables

Part#	Size
0485720	1.3 mtr
0483180	1.6 mtr
0485730	1.7 mtr
0485740	1.8 mtr
0494730	1.9 mtr
0485750	2.1 mtr
0485760	2.3 mtr
0485710	2.6 mtr
3331130	2.9 mtr

1431290

Joystick Button Plate (one button)

3536580

Joystick Button Plate (2 buttons)

3408960

Valve plate

1431300

Joystick Button Plate (nil button)

1433920

Joystick Handle 4 positions

1434230

Joystick decal Badge

1430140

Magnet Base 3rd function

1430030

Joystick rod adaptor

1429870

Joystick Articulating cross

1429950

Joystick Rubber boot

1433930

CU300 Housing complete (metal)

1401520

wk200/CU Joystick base

1433390

wk300 Cpl. Control Lever

1433400

CU300 2switch complete joystick

1433840

Joystick Handle with 2 buttons

1430150

Magnet coil FS/FZ 3rd service

Release lever

2342970

Tee adaptor

2360090

Stirrup

2361600

Trigger - unlocking device

2365680

Leg stay kit bolt HD HDPM M6x90

0445620

Spring - Leg stay HD/HDPM

1417660

Support lock welded HD/HDPM

3331380

Spring clip

3349930

Support Lock welded FS/FZ

3454320

Locking leg spring FS / FZ

3480150

Pipe support

3457010

Key/Wedge

3450930

Loader Lock handle

LEFT = 3597400

RIGHT = 3597660

Plug electrical

0488650

Seal - used with 0488650

0450550

Pressure limiting valve FZ

1430200

Elect comfort drive switch

1429680

Comp spring HDP VS140

0498120

Lock handle

1300730

Support element

1305912

Bolt M8 x 20

1406150

Screw in socket

0016491

Dowty Washer

0464310

Third service switch MK 11

3447330

Double lever CPL 30 - 50

3453810

Hose 10x550 third service

1413490

Hose 10x450 third service

1413460

Leg spring

1429150

Pillar pivot repair kit "F" 30mm

3342690

Lever - crowd link

3319780

Tube for levelling rod

3646010

wk300 Bolt 2.9x22

1430040

Pillar HD50/51 RH early version

2488930

Pillar HDPM50/51 RH early version

3425880

Pillar RH FZ 8 - 20.1

3472980

Check valve JD6030

1415500

Valve block FS/FZ third function unit

1429710

wk200 Articulating cross

1403310

wk200 Third service Switch

0401090

wk200 Elec Cable

0401500

wk200 Hex Nut

1406610

wk200 Rubber Bellow

1403580

HDP35- 36

1384190

STOLL Silage grab

0453560

STOLL Profi-cut

2450920

Seal kit

1318960

Seal kit

2464540

STOLL Bucket grab

3348160

CR

3307700

CR HDPM 15-35/36 "older version"

2450900

CR/LIFT HD/HDPM 8

3307690

CR/LIFT HD/HDPM

3307710

CR/LIFT HD/HDPM/HDP 30-36

3307720

CR

3307700

LIFT

3307730

LIFT FZ 60-60.1

3467980

CR FZ 50-60.1

3468000

CR FZ 80.1

3468010

LIFT FZ10

3473990

CR/LIFT FZ 20-30.1

3474000

LIFT FZ 40-40.1

3474010

LIFT FZ 50-50.1

3474020

CR FZ 10-30.1

3474030

CR FZ 40-40.1

3474040

60/35 FS/FZ 8-8.1

3479850

LIFT FE750P-750H

3503200

STOLL Loader Lift Rams

2477120	F/HD 8
2477130	F/HD 10
2477140	F/HD 15
2477150	F/HD 35-36
2477160	F/HD 50/51
3425640	FS / FZ 40-40.1
3441930	FS / FZ 8
3441940	FS / FZ 10
3441950	FS / FZ 20-20.1
3441960	FS / FZ 30-30.1
3441970	FZ 50.1
3441980	FZ 60-60.1
3441990	FZ 80.1
3490680	FE850H (STD) FE850P / CL855P
3490630	FE650H&P / CL655H&P
3490692	FE950H&P / FE850H (UPGRADE)

STOLL Loader Crowd Rams

2477180	F/HD 10
2477190	F/HD 15/16/30/31/35/36
2477230	HDPM 30/31
2477240	HDPM 35/36
2488730	HDPM 50/51
3301070	HDPM 15/16
3425650	FZ 40/45.
3442020	FZ 10-20.1
3442040	FZ 30/30.1
3442050	FZ 50.1
3442060	FZ 60/60.1
3442070	FZ 80.1
3447550	FS 10
3447560	FS 20/20.1
3447570	FS 30-40.1
3490722	CL755P / FE750P
3490742	FE650H /FE750H /CL655H /CL755H
3490752	FE850H /FE950H /CL855H /CL955H

Walvoil Parts

Walvoil Cables

Part#	Length (mtrs)
4CAV601500	1.50
4CAV701250	1.25
4CAV701750	1.75
4CAV702000	2.00
4CAV702250	2.25
4CAV702500	2.50
4CAV702750	2.75
4CAV703000	3.00
4CAV703500	3.50
