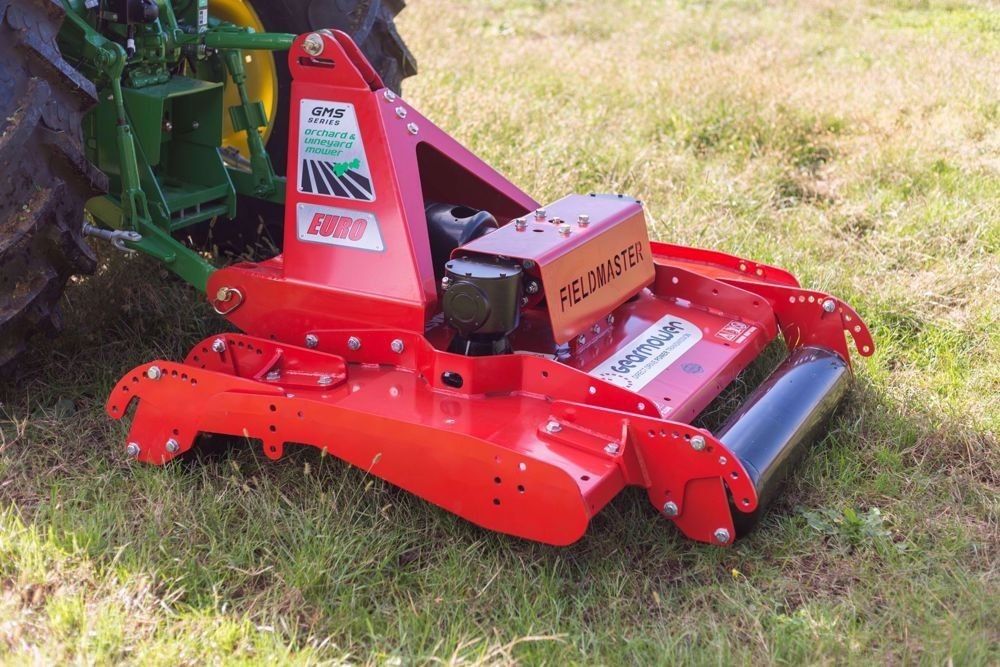

GMS Series - Side Discharge Mower
Manufacturer: Fieldmaster
The Fieldmaster range of GMS side discharge tractor mowers are available in 9 different widths. A huge range of modular options including wheels and rollers are available which ensures you receive a machine suitable for your specific vineyard or orchard conditions. Supplied standard as a side discharge mower with front stubbie rollers, rear roller and with our specially designed heavy duty axe blades which provide a significant hitting force obliterating pruning’s, trimmings and discharging the material out to the side of the mower and back under the rows. This provides an organic mulch and reduces the need for harmful sprays. Synchronised blade overlap also allows for excellent turning circles and manoeuvrability in restricted areas and headlands. Suitable for tractors 30-100HP.
DESCRIPTION
Features:
Rear mega-roller (Standard)
Twin front stubble rollers (Standard)
Front rubber guarding (Standard)
Fitted standard with axe flails
Optional front and rear wheel kits
Optional side plates
Fitted with European gearbox, driveline and cam clutch
2 Year Warranty
New Zealand made
SPECIFICATIONS
Feature | GMS140 | GMS160 | GMS180 | GMS200 | GMS230 | GMS270 | GMS300 | GMS330 |
|---|---|---|---|---|---|---|---|---|
Cutting Width (mm) | 1380 | 1580 | 1780 | 1980 | 2280 | 2680 | 2980 | 3280 |
Cutting Height (mm) | 15-100 | 15-100 | 15-100 | 15-100 | 15-100 | 15-100 | 15-100 | 15-100 |
Overall Width (mm) | 1446 | 1610 | 1816 | 2016 | 2316 | 2765 | 3065 | 3365 |
Overall Length (mm) | 1550 | 1580 | 1620 | 1654 | 1720 | 1850 | 1654 | 1720 |
Overall Height (mm) | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 |
Weight (kg) | 520 | 620 | 690 | 760 | 790 | 840 | 900 | 930 |
HP Requirement | 30-80 | 30-80 | 30-80 | 30-80 | 40-80 | 50-90 | 70-100 | 70-100 |
Blade thickness (mm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Blade Setup Std | 4x Flails | 4x Flails | 4x Flails | 4x Flails | 4x Flails | 4x Flails | 6x Flails | 6xFlails |
PTO Speed (RPM) | 540 | 540 | 540 | 540 | 540 | 540 | 1000 | 1000 |
3 Point Linkage CAT | CAT 2 | CAT 2 | CAT 2 | CAT 2 | CAT 2 | CAT 2 | CAT 2 | CAT 2 |
Roller Diameter (mm) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
*Due to continuous manufacturing improvements specifications may vary
OPTIONS
Spare 'Gold-tip' blades
Spare tripple stack mulch blades
Spare axe blades
Hardfaced tungsten mulch blade upgrade
Front mount option
4-way gearbox (160-270 2 rotor models only)
Front rubber saftey skirts
Heavy Duty deck & headstock upgrades
Mulch kits
Wheel and roller kits
