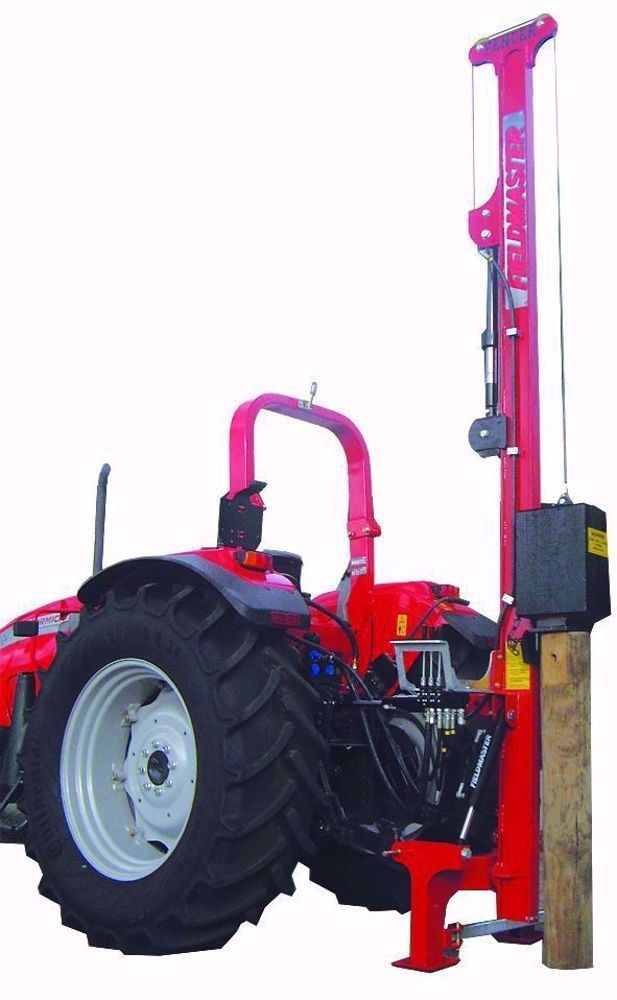

Fencer
Manufacturer: Fieldmaster
Fieldmaster’s Fencer series of post drivers are New Zealand’s most popular post driver for beef and dairy farmers. An 8:1 rope-pulley configuration means the hammer falls faster allowing you to power through the job. The Tri-beam mast is 110% stronger than a standard UB section beam meaning you get longer life out of your farm equipment. Fitted with a 230kg hammer weight, top link, side tilt and main lift ram as standard. We also offer a huge range of options to fit rockspikes, augers, folding masts and hydraulic side shifts. The minimum required hydraulic oil flow for this machine is 18ltrs per minute.
DESCRIPTION
Features:
230kg (506lb) hammer
4.0m H.D. TRI-BEAM mast
4-bank valve hydraulic side angle
Hydraulic top link
18 ltrs per min required at 1800 PSI
New Zealand Made
SPECIFICATIONS
Feature | Fencer |
|---|---|
Standard Mast Length | 4m |
Weight (inc Hammer) | 505kg |
Standard Hammer Weight | 230kg |
Side Tilt Operation | Hydraulic |
Top Link Operation | Hydraulic |
Linkage Mounting | Cat 1&2 |
Height Under Hammer (4m mast) | 3700mm |
Height Under Hammer (4.5m mast) | 4200mm |
Min Recommended PSI (Max) | 1800PSI (3000PSI) |
Min Hydraulic Flow (Max) | 18L/Min (60L/Min) |
Side Tilt Sngle (L to R) | 20/20 |
Top Link Angle (Fwd/Back) | 20/28 |
*Due to continuous manufacturing improvements specifications may vary
OPTIONS
280Kg Hammer weight
4.5m folding mast
Hydraulic side nudge ram
Hydraulic rockspike kit
Hydraulic auger kit
Closed circuit hydraulic valve system
