Forté
Manufacturer: Fieldmaster

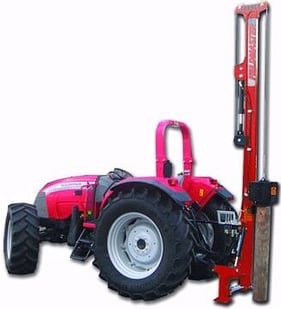

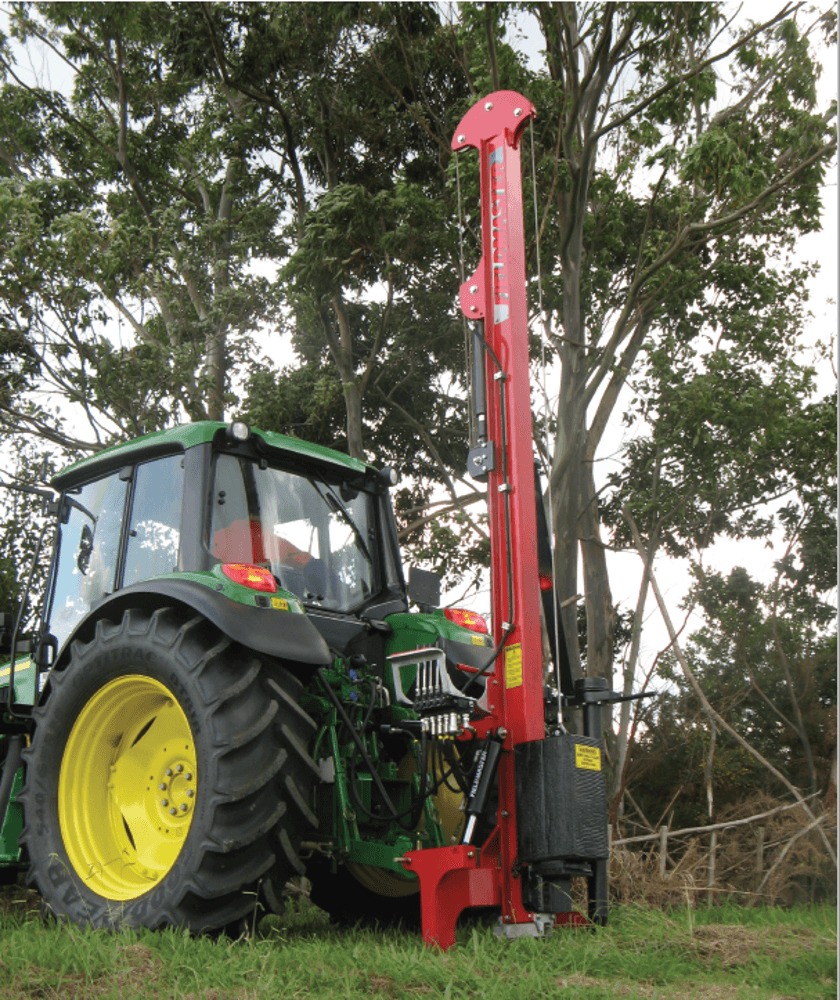

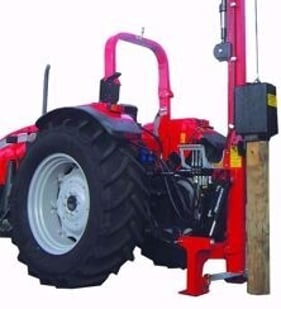

The Forte post driver series is a heavy duty piece of farm machinery designed for the New Zealand’s toughest conditions. A heavy duty offset base frame provides an extra low centre of gravity for stability and strength. A strong base also provides maximum hitting force ensuring max depth is reached easily. Oversize hydraulic cylinders ensure the mast is moved effortlessly and easily despite the substantial weight. The minimum required hydraulic oil flow for this machine is 18ltrs per minute.
DESCRIPTION
Features:
320 kg (700lb) hammer
4.0m H.D. Beamtec mast
H.D hydraulic side angle & top link rams
3-bank valve • H.D postcap with polyethylene insert
Side tilt and top links are upsized to 3” x 1.5” rams
18 ltrs per min required at 1800PSI
SPECIFICATIONS
Feature | Forte |
|---|---|
Standard Mast Length | 4m |
Weight (inc Hammer) | 605kg |
Standard Hammer Weight | 320kg |
Side Tilt Operation | Hydraulic |
Top Link Operation | Hydraulic |
Linkage Mounting | Cat 1&2 |
Height Under Hammer (4m mast) | 3700mm |
Height Under Hammer (4.5m mast) | 4200mm |
Min Recommended PSI (Max) | 1800PSI (3000PSI) |
Min Hydraulic Flow (Max) | 18L/Min (60L/Min) |
Side Tilt Sngle (L to R) | 20/20 |
Top Link Angle (Fwd/Back) | 20/28 |
*Due to continuous manufacturing improvements specifications may vary
OPTIONS
280Kg Hammer weight
4.5m folding mast
Hydraulic side nudge ram
Hydraulic rockspike kit
Hydraulic auger kit
Closed circuit hydraulic valve system
OPERATORS MANUAL & SET UP VIDEO
Instructional Post Driver Set Up Video -
