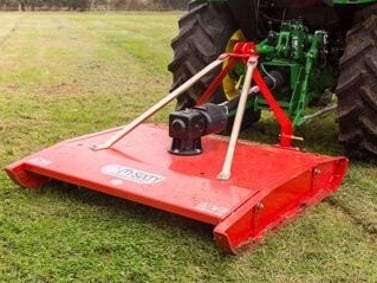

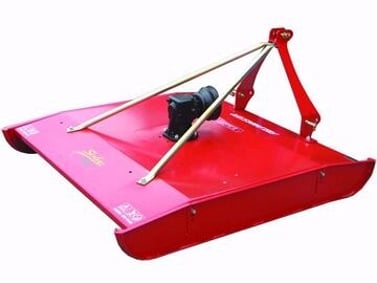

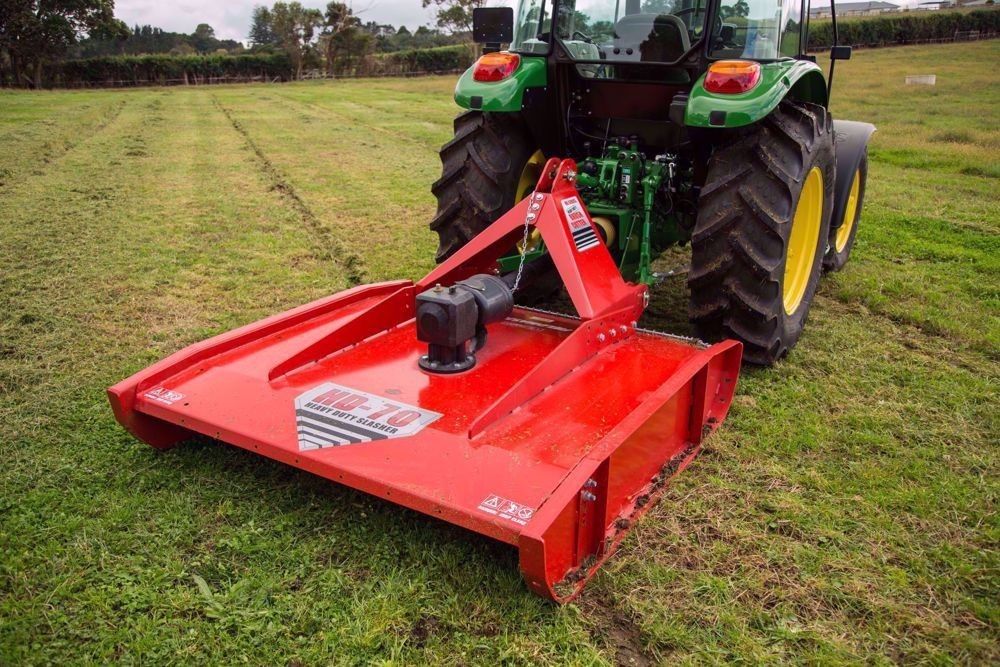

HD Series Slasher (60-100hp)
Manufacturer: Fieldmaster
The HD Series of rotary tractor mower is available in two models the HD60 and HD70. Suitable for tractors ranging in horsepower from 60-100HP. Built tough with a twin laminate 6mm thick deck, front chain guards, adjustable skids and 10mm thick heavy duty axe flails enables the HD series to tackle thick scrub and gorse without trouble! A range of optional extras ensures you receive a tailored machine to suit your specific needs.
DESCRIPTION
Features:
• 60-100hp tractors; Cat II
• Adjustable skids
• Floating top link
• Stepped axe flail
• Heavy duty laminated twin 6mm deck
• PTO driveshaft • Front chain guards
• Monocoque chassis construction
• For cutting up to 50mm (2’’) scrub
• 1 year warranty
SPECIFICATIONS
Feature | HD60 | HD70 |
|---|---|---|
Cutting Width (mm) | 1400 | 1786 |
Cutting Height (mm) | 20-120 | 20-120 |
Overall Width (mm) | 1707 | 1950 |
Overall Length (mm) | 1820 | 2090 |
Overall Height (mm) | 1160 | 1160 |
Weight (kg) | 550 | 650 |
HP Requirement | 60-100 | 60-100 |
Blade thickness (mm) | 10 | 10 |
Blade Setup Std | 2x Flails | 2x Flails |
PTO Speed (RPM) | 540 | 540 |
3 Point Linkage CAT | CAT 2 | CAT 2 |
Optional Roller Diameter (mm) | 220 | 220 |
*Due to continuous manufacturing improvements specifications may vary
OPTIONS
4 Blade upgrade kit
Full width rear mega roller
Cam clutch intergrated PTO
Over-run clutch
Rear saftey chain skirt
OPERATORS MANUAL
