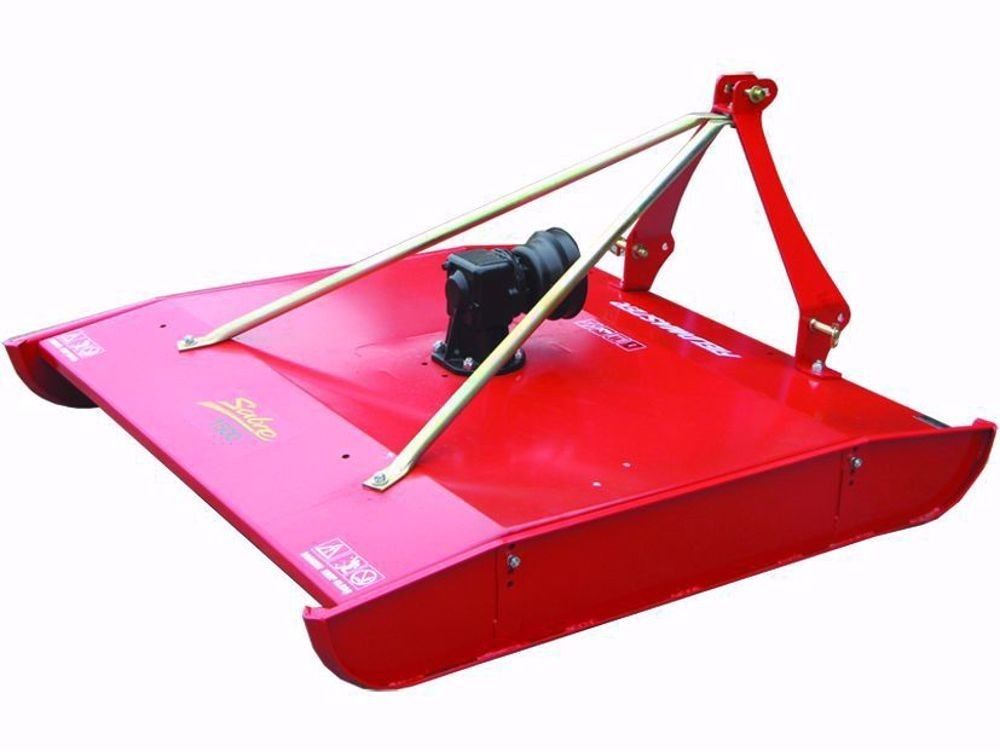

Sabre Slasher/Mower (18-40hp)
Manufacturer: Fieldmaster
The Sabre range is available in two models: the 1200 and the 1500. They are ideal for small block and lifestyle properties. Like all Fieldmaster products, the Sabre range is built tough with quality components for years of service. Sabre slashers can easily be upspecced with enhanced features for cleaner finishing for the more discerning operator. Suitable for tractors to 18-40hp, the Sabre Range represents an economical, tough solution for cutting grass or topping overgrowth around the property.
DESCRIPTION
Features:
Floating top link
Tough 5mm deck
PTO driveshaft
1 year warranty
18-40 hp compact tractors; Cat I
Adjustable skids
Offsettable linkage
Fitted with stepped slasher flail
Folded steel plate decks with integral double panels in stress zones - for a rigid chassis that takes the knocks
Clean, obstruction-free body lines for minimal grass build-up
SPECIFICATIONS
Feature | Sabre 1200 | Sabre 1500 |
|---|---|---|
Cutting Width (mm) | 1050 | 1380 |
Cutting Height (mm) | 10-85 | 10-85 |
Overall Width (mm) | 1220 | 1525 |
Overall Length (mm) | 1290 | 1580 |
Overall Height (mm) | 750 | 750 |
Weight (kg) | 150 | 210 |
HP Requirement | 18-40 | 18-40 |
Blade thickness (mm) | 10 | 10 |
Blade Setup Std | 2x Flails | 2x Flails |
PTO Speed (RPM) | 540 | 540 |
3 Point Linkage CAT | CAT1 | CAT1 |
3 Point Linkage Offset | 150RH | 150RH |
Optional Roller Diameter (mm) | 125 | 125 |
*Due to continuous manufacturing improvements specifications may vary
OPTIONS
4 Blade upgrade kit on square single clevis disc
Full width rear roller kit
Anti-wind row spreader vane
Friction clutch
Hot skids - heat treated replacable wear plates
Rubber safety skirts
Gold tip blades
