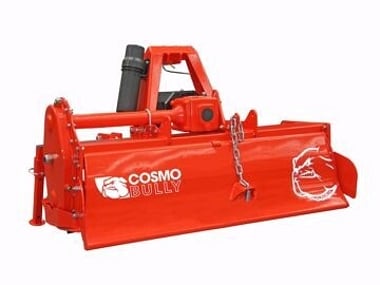

UM SERIERS ROTARY HOE
Manufacturer: Cosmo Bully
The European designed COSMO Bully UM Series Rotary Hoes are a single speed, side gear driven implement specifically for tractors in the 35 to 50hp range. Engineered to include multiple features and accessories traditionally found in much larger rotary hoes, the UM Series is suitable for use in nurseries, vineyards and orchards. The rotor features six (6) C shaped, heat treated blades (per flange) in a speed configuration. The speed configuration, a design where the blades are slightly staggered from flange to flange, reduces the horsepower required to produce a fine finish in a variety of soil conditions.
DESCRIPTION
Features:
PTO Drivehaft
Friction clutch
Height adjustable
2 models available
Optional 'speed blades'
CE Compliant
1 year warranty
SPECIFICATIONS
Feature | TBUM60 | TBUM72 |
|---|---|---|
Side Transmission | Gear drive | Gear drive |
Gearbox | 50hp, 540RPM, single speed | 50hp, 540RPM, single speed |
PTO Shaft | Series 4 with 150mm (6") friction (slip) clutch | Series 4 with 150mm (6") friction (slip) clutch |
Skids | Height Adjustable | Height Adjustable |
Finish | Powder Coated | Powder Coated |
Rotor Diameter (mm) | 434 | 434 |
Rotor Speed (RPM) | 241 | 241 |
No. of rotor flanges | 8 | 9 |
No. of blades p/flange | 6 | 6 |
No. Blades | 48 | 54 |
Blades | Curved/speed | Curved/speed |
Linkage | Cat 1 | Cat 1 |
Guarding | Standard with CE Guards | Standard with CE Guards |
Overall Width (mm) | 1775 | 1970 |
Working Width (mm) | 1650 | 1830 |
Working Depth (mm) | 180 | 180 |
Tractor Range (hp) | 30-50 | 35-50 |
Weight (kg) | 285 | 310 |
*Due to continuous manufacturing improvements specifications may vary
