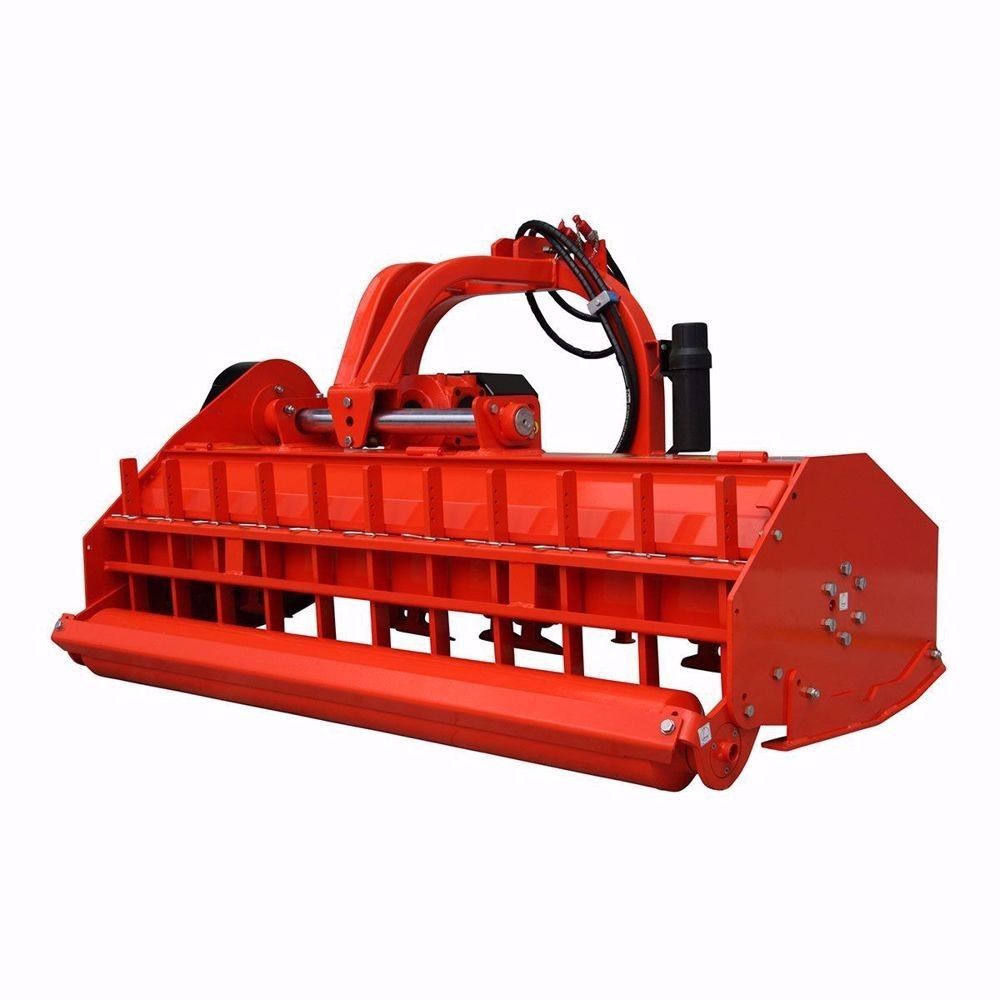

BPF SERIES MULCHER
Manufacturer: Cosmo Bully
The European designed COSMO BPF Series Mulchers are designed for tractors 50 to 100hp and have a tower that hydraulically side shifts. Like the COSMO SFM Series Mulchers, the BPF Series Mulchers are fitted with height-adjustable mulching rakes that hold larger pruning's (up to Ø 70mm) in the cutting chamber for mulching in vineyards and orchards. Additionally, the rear of the COSMO BPF Series Mulcher deck can be opened to top pastures or when the operator needs to clear the chamber. This function is beneficial when cutting high volumes of material, allowing it to be discharged efficiently without sacrificing speed. Complete with a double skinned deck, side shift, a height adjustable rear roller and hammer blades, this mulcher will produce a high–quality finish.
DESCRIPTION
Features:
PTO Drivehaft
Hydraulically offset headstock
Integrated free wheel clutch
Height adjustable
Offsetable headstock
4 models available
CE Compliant
1 year warranty
SPECIFICATIONS
Feature | BPF160H | BPF180H | BPF200H | BPF225 | BPF250H |
|---|---|---|---|---|---|
Side Transmission | Belt Drive | Belt Drive | Belt Drive | Belt Drive | Belt Drive |
Belts | Four XPB Type | Four XPB Type | Four XPB Type | Four XPB Type | Five XPB Type |
Gearbox | 100hp, 540RPM C/W Free Wheel Clutch | 100hp, 540RPM C/W Free Wheel Clutch | 100hp, 540RPM C/W Free Wheel Clutch | 100hp, 540RPM C/W Free Wheel Clutch | 100hp, 540RPM C/W Free Wheel Clutch |
PTO Shaft | Series 6 | Series 6 | Series 6 | Series 6 | Series 6 |
Skids | Adjustable, Two Postions | Adjustable, Two Postions | Adjustable, Two Postions | Adjustable, Two Postions | Adjustable, Two Postions |
Rear Roller | 165mm, Height Adjustable | 165mm, Height Adjustable | 165mm, Height Adjustable | 165mm, Height Adjustable | 165mm, Height Adjustable |
Finish | Powder Coated | Powder Coated | Powder Coated | Powder Coated | Powder Coated |
Rotor Swing Dia (mm) | 410 | 410 | 410 | 410 | 410 |
Rotor Diameter (mm) | 170 | 170 | 170 | 170 | 170 |
Rotor Speed (RPM) | 2146 | 2146 | 2146 | 2146 | 2146 |
Type Of Blade | Hammer | Hammer | Hammer | Hammer | Hammer |
No. Blades | 16 | 16 | 20 | 20 | 24 |
Tower Postion/Offset | Hydraulic Sideshift (400mm) | Hydraulic Sideshift (337mm) | Hydraulic Sideshift (437mm) | Hydraulic Sideshift (467mm) | Hydraulic Sideshift (467mm) |
Linkage | Cat 2 | Cat 2 | Cat 2 | Cat 2 | Cat 2 |
Guarding | CE Compliant | CE Compliant | CE Compliant | CE Compliant | CE Compliant |
Overall Width (mm) | 1800 | 2000 | 2200 | 2450 | 2700 |
Working Width (mm) | 1580 | 1780 | 1980 | 2230 | 2480 |
Cutting Height (mm) | 20-75 | 20-75 | 20-75 | 20-75 | 20-75 |
Tractor Range (hp) | 60-100 | 60-100 | 70-100 | 80-100 | 85-100 |
Weight (kg) | 640 | 680 | 735 | 800 | 865 |
*Due to continuous manufacturing improvements specifications may vary
