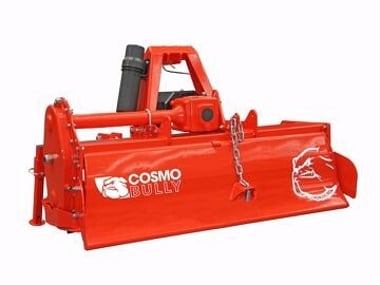

VH SERIES ROTARY HOE
Manufacturer: Cosmo Bully

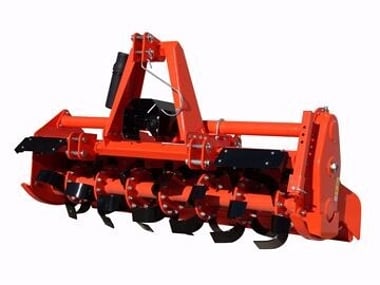

The Cosmo VH Series Rotary Hoe is a gear driven implement engineered in Europe for tractors 50 to 90hp. It is fitted with a multispeed gearbox that allows the operator to customize the input speed (540/1000rpm) and the blade tip speed. The main frame is a robust and rigid construction with box section reinforcing for the category 2/3 lower linkage mounting points. Square/L blades are mounted in a six blades per flange configuration. This design, where the blades are slightly staggered from flange to flange, prevents the worked soil from clogging the chamber, reduces blade impact, horsepower requirements and the number of passes required to produce a fine finish in a variety of soil conditions. The VH Rotary Hoe produces a super fine finish, with the spring-loaded tailgate keeping soil inside the chamber and in contact with the blades until it is well pulverized. Capable of operating all day, every day, in demanding soil conditions the VH Rotary Hoe is perfect for a range of commercial agricultural and horticultural applications
DESCRIPTION
Features:
PTO Drivehaft
90hp, multi speed 540/1000rpm gearbox
Friction clutch
Height adjustable
Optional 'speed blades'
CE Compliant
1 year warranty
SPECIFICATIONS
Feature | TBVH60 | TBVH70 | TBVH80 |
|---|---|---|---|
Side Transmission | Gear drive | Gear drive | Gear drive |
Gearbox | 90hp, 540RPM, multi speed (1000RPM Option) | 90hp, 540RPM, multi speed (1000RPM Option) | 90hp, 540RPM, multi speed (1000RPM Option) |
PTO Shaft | Series 6 with 200mm (8") friction (slip) clutch | Series 6 with 200mm (8") friction (slip) clutch | Series 6 with 200mm (8") friction (slip) clutch |
Skids | Height Adjustable | Height Adjustable | Height Adjustable |
Finish | Powder Coated | Powder Coated | Powder Coated |
Rotor Diameter (mm) | 521 | 521 | 521 |
Rotor Speed (RPM) | 191-240 at 540RPM / 248 at 1000RPM | 191-240 at 540RPM / 248 at 1000RPM | 191-240 at 540RPM / 248 at 1000RPM |
No. of rotor flanges | 6 | 7 | 8 |
No. of blades p/flange | 6 | 6 | 6 |
No. Blades | 36 | 42 | 48 |
Blades | Curved/speed | Curved/speed | Curved/speed |
Linkage | Cat 2 | Cat 2 | Cat 2 |
Guarding | Standard with CE Guards | Standard with CE Guards | Standard with CE Guards |
Overall Width (mm) | 1705 | 1945 | 2185 |
Working Width (mm) | 1540 | 1780 | 2020 |
Working Depth (mm) | 225 | 225 | 225 |
Tractor Range (hp) | 50-90 | 60-90 | 70-90 |
Weight (kg) | 580 | 620 | 665 |
*Due to continuous manufacturing improvements specifications may vary
